5000L/H Stainless Steel Automatic Water Softener Machine

    Buy cheap 5000L/H Stainless Steel Automatic Water Softener Machine from wholesalers

    Buy cheap 5000L/H Stainless Steel Automatic Water Softener Machine from wholesalers
    • Buy cheap 5000L/H Stainless Steel Automatic Water Softener Machine from wholesalers

    5000L/H Stainless Steel Automatic Water Softener Machine

    Ask Lasest Price
    Brand Name : AJIEWATER
    Model Number : AJ
    Certification : ROSH
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : >300sets/month
    Delivery Time : 7-15working days(depand on raw materials stocking)
    • Product Details
    • Company Profile

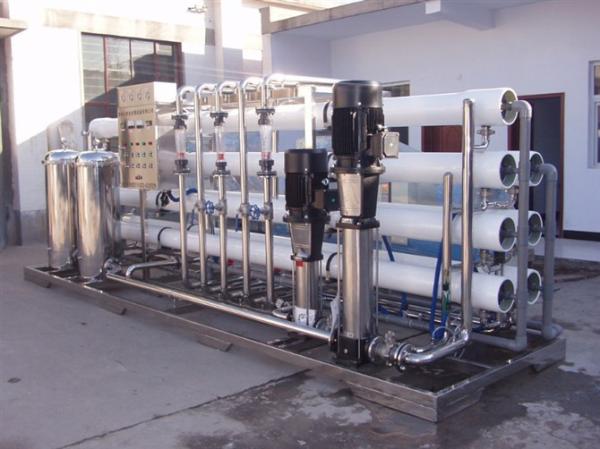

    5000L/H Stainless Steel Automatic Water Softener Machine

    Stainless Steel Standby Water Softener 5000L/H Industrial Water Treatment System For Drinking
    Name:Industrial RO System 5000L/H Water Treatment PlantPretreatmentQuartz Sand/ Activated Carbon/ Security PP Filter
    Application:Drinking Water TreatmentRO MembraneLCLE-4040,BW30-400
    Electrical Power:Single Phase/3Phase (customize)Production Capacity5000L/H
    Tank Material:FRP/ Stainless SteelControl ValveAutomatic
    Pipe Fitting:SUS304/ U-PVCPumpCNP
    Quartz Sand:50KG/bag

    Stainless Steel Standby Water Softener 5000L/H Industrial Water Treatment System For Drinking


    Equipment summarize:

    Reverse osmosis system is using city water as feed water.
    Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.


    Description of RO unit

    This system adopts mechanical and carbon filtration as pre-stage treatment. The device removes the sediments, organic substance, colloid, bacteria and other impurities in water. And the water can be pre-desalted by program control system. Most of the dissolved salt species material, bacteria and heat source can be removed by this method. Then use ozone preservation device to make sure that the water quality is up to the standard.

    This system has both automatic and manual mode. The self-set program control system can implement the automatic running mode by regulating the transducer and pressure controller.


    1. Product Processing: System Performance, Function, Application, Component...

    Process: Raw water----raw water tank----raw water pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system---UV system (Ozone generator)---pure water tank


    Industrial Reverse Osmosis RO Water Treatment Process

    ►Industrial reverse osmosis plant includes a multimedia prefilter, water softener or antiscalant dosing system(optional), dechlorination dosing system, reverse osmosis unit with semi-permeable membranes, and UV sterilizer or post chlorination as a post treatment.
    ►These RO machines apply the technology of reverse osmosis by transporting feed water through a multimedia prefilter to remove particles that are larger than 10-micron.
    ►Then the water is injected by an antiscalant chemical to control hardness fouling that may cause damage to the membranes of the RO machine. These pretreatment options have the capability of removing hardness, chlorine, odors, color, iron, and sulfur.
    ►The water then continues into the reverse osmosis unit where a high-pressure pump applies extreme pressure to the highly concentrated solution, separating the remaining salts, minerals, and impurities that the pre-filter cannot catch.
    ►Fresh, potable water comes out from the low-pressure end of the membrane while salts, minerals, and other impurities are discharged into a drain on the other end.
    ►Lastly, the water is passed through a UV sterilizer (or post chlorination) to kill any bacteria and microbes that still exist in the water.


    Applications

    Industries such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment, employ ultrafiltration in order to recycle flow or add value to later products. Blood dialysis also utilizes ultrafiltration.
