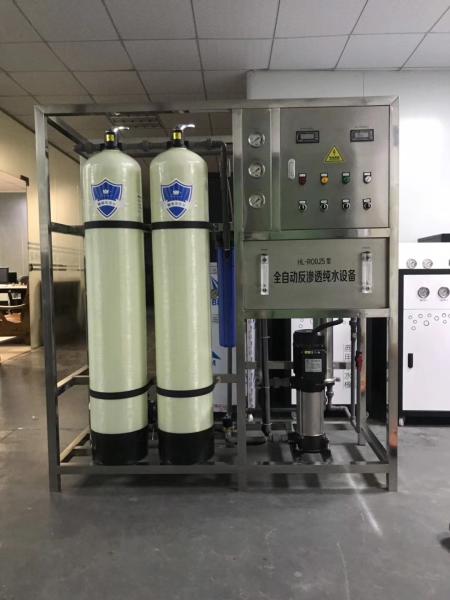

Fully Stainless Steel RO Water Treatment System 10TPH Water Purifying Machine For Drinking
Equipment summarize:
Reverse osmosis system is using city water as raw water, then treat
water by Pre-filter (water softener is optional), reverse osmosis
membrane. It can remove particle, colloid, organic impurity, heavy
metal ion, bacteria, virus in water, and it can also remove 99%
dissolved salt.
The whole system desalination rate can reach 96%-99% to make
permeated water conductivity<10 us/cm. Dense water also won't
polluted environment. Reverse osmosis equipment no need to consider
about input water quality too much. And the main features of RO
equipment is no need to do any regeneration, it can be keep stable
for long time.
Detailed Product Description
Name: | Industrial RO System 10000L/H Water Treatment Plant | Pretreatment: | Quartz Sand/ Activated Carbon/ Security PP Filter |
Application: | Drinking Water Treatment | RO Membrane: | BW30-400IG DuPont |
Electrical Power: | 110V/220V/380V, 50Hz/60Hz | Production Capacity: | 10000L/H |
Tank Material: | FRP/ Stainless Steel/ Carbon Steel | Control Valve: | Automatic |
Pipe Fitting: | SUS304/ U-PVC | Pump: | CNP |
INFRMATION OF THE MACHINE
Mode | KYRO-10TPH |
Power | Around 19.0KW |
Voltage | 380V/3ph/50Hz (customize available) |
Desalination rate | > 97% |
Recovery rate | 50%-75% |
Material | FRP, Stainless Steel , U-PVC |
Configurations | CNP pump&USA DOW membrane |
Certification | CE & ISO & SGS |
Some parts function
1.Raw water pump: provide needed pressure for every pre-treatment
filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand,
it can filter big particles impurities, suspended substances,
colloids etc. Important to remove iron and sediments you
mentioned;^^
3.Activated carbon filter: use fiber glass as housing, fill
activated carbon, remove color, odor, residual chlorine and
organics substances;
4.Security filter: prevent large particles, bacteria, viruses into
RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO
system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities,
heavy metal ions, bacteria, virus, heat source etc. harmful
substances and 99% dissolved salts.
Functions:
1. High operation automation degree.
1) Automatic stopping in case of sufficient water under low
pressure
a) Protection of hydraulic fluctuation resistance
b) Timed flushing of front filtering materials by automatic
controller
c) Automatic flushing of reverse osmosis film by IC microcomputer
controller
d) Automatic monitoring of water quality
2. Small landing area, low energy consumption, free of pollution,
simple process, high water quality and easy operation and
maintenance
3. High removing rate, above 97% for dissolved salts, above 98% for
organic substances, and above98% for colloids, bacteria and heat
sources etc.
Application
Electronic industry | Pre-filter for ultra pure water, chemical products and pure water |
Food & beverage industry | filter for mineral water, wines and fruit juice, bottled drinking water |
Medicine industry | filter for drug liquid |
Chemical industry | filter for organic solvent |
Petroleum industry | filter for oil-field flooding |
Technical Flowchart of Reverse Osmosis Plant
Untreated water feed pump →Quartz sand filtration→ Active carbon
filtration → Precise filtration → Softener→ High pressure pump →RO
Membrane system→ CIP system → PLC system → Post Treatment (UV
disinfection)
Advantages
(1). National famous brand, well trusted by thousans of clients
along the globe.
(2). The de-fat steam dried fish meal is of higher protein content,
longer storage time.
(3). Lower energy consumption.( About 60% as before)
(4). The byproduct fish oil also has very good market value
(5). Automatic processing system needs less worker.
(6). The evaporator makes higher protein content in fish meal and
saves energy
(7). The deodorizer makes less pollution.
The whole plant contains screw conveyor, cooker, press, decanter,
drier, centrifuge, evaporator, boiler, electrical controller and
other accessory equipments.
![]() |
