    Medical Hemodialysis 1000LPH RO Water Treatment Plant

    Ask Lasest Price
    Brand Name : ajiewater
    Model Number : CK-RO
    Certification : CE,ISO
    Price : Negotiate
    Payment Terms : Paypal, L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Medical Hemodialysis 1000LPH RO Water Treatment Plant

    1000LPH RO Water Treatment Plant Reverse Osmosis Equipment


    Detailed Product Description

    Item:1000LPH RO Water Treatment Plant Reverse Osmosis EquipmentRaw Water:Tap Water, Underground Water
    Usage:IndustryOutput:1000L Per Hour
    Material:Fiber Reinforced PolymerRaw Water:Underground , Tap Water , River Water And So On .
    Certificate:CE, SGS


    1000L Water treatment plant:

    1. Water for pharmaceutical industry: pharmaceutical, preparation process water, medical hemodialysis, biochemical analysis, infusion, etc.
    2. Purified drinking water, distilled water, natural water, mineral water, mineralized water, pure water for blending liquor, water for saccharification of beer and filtration of pure draft beer in the beverage industry.
    3. Making pure and ultra-pure water for the electronic industry, such as monocrystalline silicon semiconductor integrated circuit block, picture tube, glass shell, liquid crystal display, etc.
    4. Deionized water for electroplating process, pure water for battery production process, pure water for surface coating and cleaning of
    automobiles, household appliances and building materials, pure water for coated glass, and desiccating brine for textile and dyeing process.
    5. Water purification for hotels, buildings, communities and swimming pools.
    6, and cosmetics manufacturing and other USES.


    3T RO System configuration list


    NO.

    Device Description

    Origin/brand

    Quantity

    1

    Raw water pump(CHL4-50 SS304 )

    CNP

    1 Set

    A. Flow: 6.0m3/H Head: 29m K = 1.1kw


    B. Including: inlet valve, return valve, pipe fittings and so on



    2

    Sand filter φ600×1700MM

    CHUNKE

    1 Set

    A. Stainless steel tank

    CHUNKE


    B. Backwash multiplex valve

    Runixn

    1 Set

    C. Top&bottom water distributor and center pipe


    1 Set

    3

    Carbon filter φ600×1700MM

    CHUNKE

    1 Set

    A. Stainless steel tank

    CHUNKE


    B. Backwash multiplex valve

    Runixn

    1 Set

    C. Top&bottom water distributor and center pipe


    1 Set

    4

    5μm Cartridge filter

    CHUNKE

    1 Set

    A. Model: PFS-5P-30 material:SS304

    CHUNKE

    1 Set

    B. 30″×5μm PP filters

    China

    5pcs

    5

    High pressure pump CDLS4-16

    CNP

    1 Set

    A. Flow: 6.0m3/h Head:101m



    B. Material:SS304 K=3.0KW



    6

    Reverse osmosis water production: 3m3/h, desalination rate:96~99%, System water utilization: 50%-60%

    1 Set

    A. Membrane housing 8040 FRP 300PSI

    CHUNKE

    3pcs

    B. Membrane element 8040

    Vontron

    3pcs

    C. 304 Stainless steel frame


    1 Set

    D. Water supply solenoid valve DN32


    1 Set

    E. Concentrated water solenoid valve DN25


    1PC

    F. High pressure water inlet valve DN32


    1 Set

    G. Concentrated water flow control valve DN25


    1PC

    H. Water inlet check valve DN32


    1 Set

    7

    Raw water tank SS304


    1 Set

    A. Capacity: 3000L



    B. Water inlet and outlet control pipe valve


    1 Set

    C. Water level control switch


    1PC

    8

    Pure water pump CHL4-40

    CNP

    1 Set

    A. Flow: 4.0m3/H Head: 31m K = 0.75kw



    B. Including: Outlet valve, pipe fittings and so on



    9

    Ultraviolet sterilizer


    1 Set

    A. Model: CK-U.V-30 K=28W



    B. Flow:3.0m3/h material: SS304



    10

    Cartridge Filter Housing PFS-5P-20


    1 Set

    A. Material: SS304


    1PC

    B: 20″×0.22μm Microporous Cartridge


    5PCS

    11

    Ozone generator 10g/h


    1 Set

    A. Power: 200W, 220V50Hz



    B. Including: ozonizer



    12

    Pipe fittings, valves(304 stainless steel)

    China

    1 Set

    13

    Electronic control system

    CHUNKE

    1 Set

    A. Program controller RO-PLC


    1 Set

    B. Voltmeter


    1PC

    C. Air switch


    1PC

    D. AC contactor


    1 Set

    E. Thermal overload protection


    1 Set

    F. Insurance tube


    1 Set

    G. Indicator light


    1 Set

    H. Third gear switch; emergency stop button


    1 Set

    I. Wire and cable


    1 Set

    14

    Filter Media

    China

    1 Set

    A. Quartz sand

    China

    450KG

    B. Activated carbon

    China

    150KG

    C. 30″×5μm PP filters


    25PCS

    15

    Pressure gauges/Water quality detector

    China

    1 Set

    A. Reverse osmosis pressure gauge 0~25kgf/ cm2

    China

    2pcs

    B. Pretreatment pressure gauge 0~7kgf/ cm2

    China

    3pcs

    C. Low voltage protection switch P-06


    1PC

    D. Reverse osmosis water conductivity meter CM-230

    China

    1PC

    E. Water - producing conductivity meter CM-230

    China

    1 Set

    16

    Flowmeter Panel type(30GPM)

    China


    A. One stage Pure water flowmeter

    China

    1 Set

    B. One stage Strong water flowmeter

    China

    1 Set

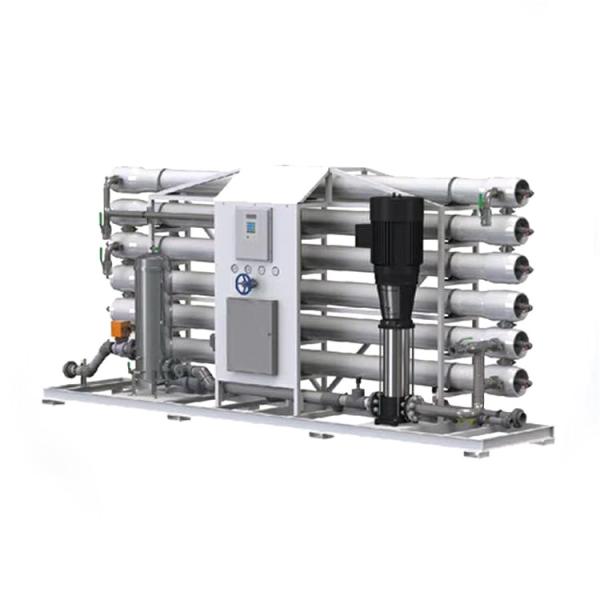

    RO System Pictures
